Description
Engine |
Asia excl. China
Art no: 967 93 29‑02
|

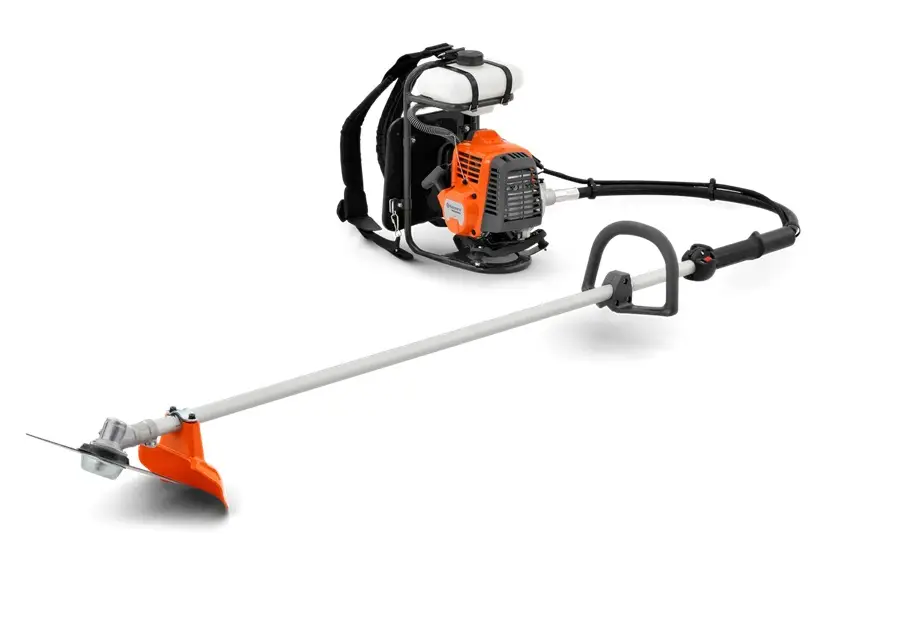

Backpack, Multi 330-2 (1″), INDIA
Art no: 967 93 29‑04
|
|---|---|---|
Cylinder displacement |
33.6 cm³ | 33.6 cm³ |
Output power shaft |
1.1 kW | |
Fuel tank volume |
1.3 l | 1.3 l |
Fuel consumption |
598 g/kWh | 598 g/kWh |
Maximum power speed |
7,500 rpm | 7,500 rpm |
Idling speed |
2,500 rpm | 2,500 rpm |
Maximum rpm output shaft |
9,600 rpm | 9,600 rpm |
Electrode gap |
0.6 mm | 0.6 mm |
Clutch engagement speed (±120) |
3,300 rpm | 3,300 rpm |
Torque, max. |
1.72 Nm | 1.72 Nm |
Torque, max. at rpm |
5,000 rpm | 5,000 rpm |
Spark Plug |
NGK BPM7A | Champion RCJ6Y |
Equipment |
||
Grass blade |
Multi 330-2 | Multi 330-2 |
Harness |
Integrated | Integrated |
Saw blade |
Not included | Not included |
Trimmer head |
PT104 M10 | Not included |
Handle type |
Loop | Loop |
Control |
||
Connectivity |
Not applicable | Not applicable |
Capacity |
||
Cutting width |
33 cm | 33 cm |
Transmission |
||
Gear ratio |
1.25 | 1.25 |
Drive gear angle |
60 ° | 60 ° |
Dimensions |
||
Tube diameter |
26 mm | 26 mm |
Weight (excl. cutting equipment) |
8.9 kg | 8.9 kg |
Tube length |
1,500 mm | 1,500 mm |
Lubricant |
||
Lubricant type (Engine) |
Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
Lubricant type (bevel gear) |
Mineral grease | Mineral grease |
Sound and noise |
||
Sound pressure level at operators ear |
87 dB(A) | 87 dB(A) |
Sound power level, guaranteed (LWA) |
108 dB(A) | 108 dB(A) |
Emission |
||
Exhaust emissions (HC average) EU |
0 g/kWh | 0 g/kWh |
Exhaust emissions (HC average) CARB |
0 g/kWh | 0 g/kWh |
Exhaust emissions (CO average) EU |
0 g/kWh | 0 g/kWh |
Exhaust emissions (CO average) EPA |
0 g/kWh | 0 g/kWh |
Exhaust emissions (NOx average) EU |
0 g/kWh | 0 g/kWh |
Exhaust emissions (NOx average) EPA |
0 g/kWh | 0 g/kWh |
Exhaust emissions (COâ‚‚ EU V) |
0 g/kWh | 0 g/kWh |
Vibration |
||
Equivalent vibration level (ahv, eq) left handle |
1.89 m/s² | 1.89 m/s² |
Equivalent vibration level (ahv, eq) right handle |
1.98 m/s² | 1.98 m |
